The harmonic oscillator

One of the most important examples in all branches of physics is the harmonic oscillator. The potential has the shape of a parabola with the potential energy of

\[ E_{\mathrm{pot}} = \frac{1}{2} D x^2 \]

and the repelling force depends linearly on the deviation from the equilibrium position

\[ F = - \mathrm{grad} \left( E_{\mathrm{pot}} \right) = - D x \mathrm{.} \]

This harmonic potential is a first approximation for a bonding and non-bonding interaction of two atoms. The potential energy of a diatomic molecule can be described, for example, by the Morse potential

\[ E_{\mathrm{pot}} = D \left( 1 - \mathrm{e}^{-a \left( r - r_e \right)} \right)^2 - D \]

with the parameters \(D\), \(a\), and \(r_e\).

# Parameters
De = 1.0  # Well depth
a = 1.0   # Controls width
re = 2.0  # Equilibrium distance

# Generate r values
r = np.linspace(1.0, 8.0, 1000)

# Morse potential
def morse(r, De, a, re):
    return De * (1 - np.exp(-a*(r-re)))**2-De

# Calculate force constant k at equilibrium for harmonic approximation
k = 2 * De * a**2  # Second derivative of Morse potential at r=re

# Harmonic approximation
def harmonic(r, k, re):
    return 0.5 * k * (r-re)**2 + morse(re, De, a, re)

# Plot
plt.figure(figsize=get_size(10, 8))
plt.plot(r, morse(r, De, a, re), 'k-', label='Morse potential')
plt.plot(r, harmonic(r, k, re), 'k--', label='Harmonic potential')
plt.xlabel('internuclear distance r')
plt.ylabel('potential energy ')
plt.legend()
plt.ylim(-De,2)
plt.show()

Figure 1— Plot of the Morse potential and the harmonic approximation

For small oscillations around the equilibrium position \(r_e\), the Morse potential can be approximated by a harmonic potential, as shown in the figure above. In classical mechanics, this corresponds to a two-body system where we use the reduced mass \(m = \frac{m_1m_2}{m_1+m_2}\) of the two atoms oscillating around the equilibrium position (\(x = 0\)) under the influence of a restoring force \(F = - D x\). The system will perform a harmonic oscillation with the frequency

\[ \omega = \sqrt{\frac{D}{m}} \mathrm{.} \]

In order to discuss a quantum mechanical harmonic oscillator we start with the Schrödinger equation and the harmonic potential \(E_{\mathrm{pot}} = D x^2/2\),

\[ -\frac{\hbar^2}{2m} \frac{\partial^2}{\partial x^2} \psi \left( x \right) + \frac{1}{2} D x^2 \psi \left( x \right) = E \psi \left( x \right) \mathrm{,} \]

which becomes

\[ -\frac{\hbar^2}{2m} \frac{\partial^2}{\partial x^2} \psi \left( x \right) + \frac{1}{2} \omega^2 m x^2 \psi \left( x \right) = E \psi \left( x \right) \]

with the aid of the relation between the frequency \(\omega\) and the curvature of the potential \(D\) and finally

\[ \frac{\partial^2}{\partial x^2} \psi \left( x \right) + \left( \frac{2 m}{\hbar^2} E - \frac{m^2 \omega^2}{\hbar^2} x^2 \right) \psi \left( x \right) = 0 \mathrm{.} \]

Harmonic oscillator

While the classical harmonic oscillator discusses the dynamics of a particle in a harmonic potential, the quantum mechanical harmonic oscillator is discussing the stationary states of the particle in the same potential.

To solve the Schrödinger equation, we introduce the dimensionless variable \(\xi\) and the dimensionless energy \(C\), which are defined as

\[ \begin{aligned} x & = \sqrt{\frac{\hbar}{m \omega}} \cdot \xi\\ E & = \frac{\hbar \omega}{2} C \end{aligned} \]

and reformulate the Schrödinger equation like

\[ \frac{\partial^2}{\partial \xi^2} \psi \left( \xi \right) + \left( C - \xi^2 \right) \psi \left( \xi \right) = 0 \mathrm{.} \]

To understand the asymptotic behavior of the wave function, let’s consider what happens for very large values of \(\xi\). In this regime, the term \(\xi^2\) in the Schrödinger equation will dominate over the energy term \(C\), giving us the simplified equation:

\[\frac{\partial^2}{\partial \xi^2} \psi(\xi) - \xi^2 \psi(\xi) \approx 0\]

We can try a solution of the form \(\psi(\xi) \propto e^{f(\xi)}\). Inserting this into our simplified equation yields:

\[f''(\xi) + [f'(\xi)]^2 = \xi^2\]

For large \(\xi\), we expect the dominant term to be \([f'(\xi)]^2 = \xi^2\), giving \(f'(\xi) = \pm \xi\) and thus \(f(\xi) = \pm \frac{\xi^2}{2}\). The negative solution ensures the wave function remains bounded as \(\xi \to \infty\). Therefore, we can deduce that \(\psi(\xi)\) must behave like \(\propto e^{-\frac{\xi^2}{2}}\) in its asymptotic limit. Based on this asymptotic behavior, we can write the general solution as

\[ \psi \left( \xi \right) = H \left( \xi \right) \mathrm{e}^{- \frac{\xi^2}{2}} \mathrm{.} \]

If we substitute our general solution back into the Schrödinger equation, we find:

\[ \frac{\partial^2}{\partial \xi^2} H \left( \xi \right) - 2 \xi \frac{\partial}{\partial \xi} H \left( \xi \right) + \left( C - 1 \right) H \left( \xi \right) = 0 \mathrm{.} \]

This differential equation is known as the Hermite differential equation - you may have encountered similar equations in your math courses. The solutions to this equation are special polynomials called Hermite polynomials, which are indexed by integer values n = 0, 1, 2, 3, etc. These polynomials can be written as:

\[ H_n \left( \xi \right) = \left( -1 \right)^{n} \cdot \mathrm{e}^{\xi^2} \cdot \frac{\partial^{n}}{\partial \xi^{n}} \left( \mathrm{e}^{- \xi^2} \right) \]

When we plug these Hermite polynomials back into our equation as \(H_{n} \left( \xi \right)\), we find a simple relationship between our dimensionless energy C and the polynomial index n:

\[ C -1 = 2 n \mathrm{.} \]

The first four Hermite polynomials \(H_n \left( \xi \right)\) and the according wave functions \(\psi_n \left( \xi \right)\) are listed in the following table.

\(n\)	\(E_n\)	\(H_{n} \left( \xi \right)\)	\(\psi_{n} \left( \xi \right)\)
0	\(\frac{1}{2} \hbar \omega\)	\(1\)	\(N_0 \cdot \mathrm{e}^{-\frac{1}{2}\xi^2}\)
1	\(\frac{3}{2} \hbar \omega\)	\(2 \xi\)	\(N_1 \cdot 2\xi \cdot \mathrm{e}^{-\frac{1}{2}\xi^2}\)
2	\(\frac{5}{2} \hbar \omega\)	\(4 \xi^2 -2\)	\(N_2 \cdot \left(4\xi^2-2\right) \cdot \mathrm{e}^{-\frac{1}{2}\xi^2}\)
3	\(\frac{7}{2} \hbar \omega\)	\(8 \xi^3 -12\xi\)	\(N_3 \cdot \left(8\xi^3-12\xi\right) \cdot \mathrm{e}^{-\frac{1}{2}\xi^2}\)

In addition, the normalization factors \(N_n \left( \xi \right)\) are indicated which we have to choose in accord with the normalization condition.

\[ \int_{x = -\infty}^{+\infty} \left| \psi_n \left( x \right) \right|^2 \mathrm{d}x = 1 \]

We can reformulate the Hermite polynomials through a power series expansion

\[ H_n \left( \xi \right) = \sum_{k = 0}^{n} a_k \cdot \mathrm{\xi}^{k} \mathrm{.} \]

This series has to be finite, since otherwise \(H_n \left( \xi \right)\) will approach \(+\infty\) for \(\xi > 1\) and

\[ \psi_n \left( x \right) = \tilde{H}_n \left( x \right) \mathrm{e}^{-\frac{m \omega}{2\hbar} x^2} \]

cannot be normalized for all \(x\). If we now use the formula for the series expansion of \(H_n \left( \xi \right)\) in the differential equation and sort by coefficients with equal power of \(\xi^k\), we obtain the recursive equation

\[ \left( k+2 \right) \cdot \left( k+1 \right) \cdot a_{k+2} = \left[ 2k - \left( C-1 \right)\right] \cdot a_k \mathrm{.} \]

Because the series of \(H_n \left( \xi \right)\) has to be finite, we set \(\xi^n\) as the highest power of \(\xi^k\), which results in \(a_{n+2} = 0\). As a consequence and since \(a_n \neq 0\), we can state

\[ 2n - \left( C-1 \right) = 0 \]

which results in

\[ n = \frac{1}{2} \left( C-1 \right) \mathrm{.} \]

If we re-substitute \(C=2E / \left( \hbar \omega \right)\) and isolate \(E\), we obtain

\[ E = \hbar \omega \left( n +\frac{1}{2} \right) = E_n\mathrm{,} \]

with \(n = 0,1,2,3 \ldots\).

One of the most striking features of the quantum harmonic oscillator is that the energy eigenvalues \(E_n\) are not only quantized and equidistant, but also possess a fundamental minimum energy that cannot be zero. This zero-point energy

\[ E_0 = \frac{1}{2} \hbar \omega \mathrm{.} \]

represents a fundamental quantum mechanical effect with far-reaching consequences in quantum field theory and physical chemistry. It demonstrates that quantum systems cannot be completely at rest, even at absolute zero temperature. Since the quantum number \(n\) uniquely determines the energy of the oscillation, it is referred to as oscillation quantum number. The oscillating wave function finally reads as

\[ \psi_n \left( x \right) = \tilde{H}_n \left( x \right) \cdot \mathrm{e}^{-\frac{m \omega}{2 \hbar} x^2} \]

The normalization constant \(N_n\) is determined by the normalization condition to be

\[N_n=\left(\frac{m \omega}{\pi \hbar}\right)^{1 / 4} \frac{1}{\sqrt{2^n n!}}\]

The quantum mechanical harmonic oscillator shows a non-zero ground state energy, in contrast to a particle in a square potential well. This fundamental difference arises from the uncertainty principle - in the harmonic oscillator potential, a particle completely at rest (\(p=0\)) would have a precisely defined position at \(x=0\), violating \(\Delta x \Delta p \geq \hbar/2\). The square well, however, allows the particle to have zero momentum while still being delocalized across the well width, satisfying the uncertainty principle even with zero energy.

def psi_n(x, n):
    N = 1.0/np.sqrt(2**n * math.factorial(n) * np.pi**0.5)
    H = hermite(n)
    return N * H(x) * np.exp(-x**2/2)

# Parameters
x = np.linspace(-8, 8, 1000)

# Create potential energy function
V = 0.5 * x**2

# Create figure with two subplots
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=get_size(12, 6))

# First subplot - wavefunctions
ax1.plot(x, V, 'k--', label='V(x)', alpha=0.3)
for n in range(10):
    psi = psi_n(x, n)
    E_n = n + 0.5
    ax1.axhline(E_n, ls="--")
    ax1.plot(x, psi*0.5 + E_n, "k-", label=f'n={n}')
ax1.set_xlabel('position (x)')
ax1.set_ylabel('energy')
ax1.set_ylim(-0.5, 10)

# Second subplot - magnitude square
ax2.plot(x, V, 'k--', label='V(x)', alpha=0.3)
for n in range(10):
    psi = psi_n(x, n)
    E_n = n + 0.5
    ax2.axhline(E_n, ls="--")
    ax2.plot(x, np.abs(psi)**2 + E_n, "k-", label=f'n={n}')
ax2.set_xlabel('position (x)')
ax2.set_ylabel('energy')
ax2.set_ylim(-0.5, 10)

plt.show()

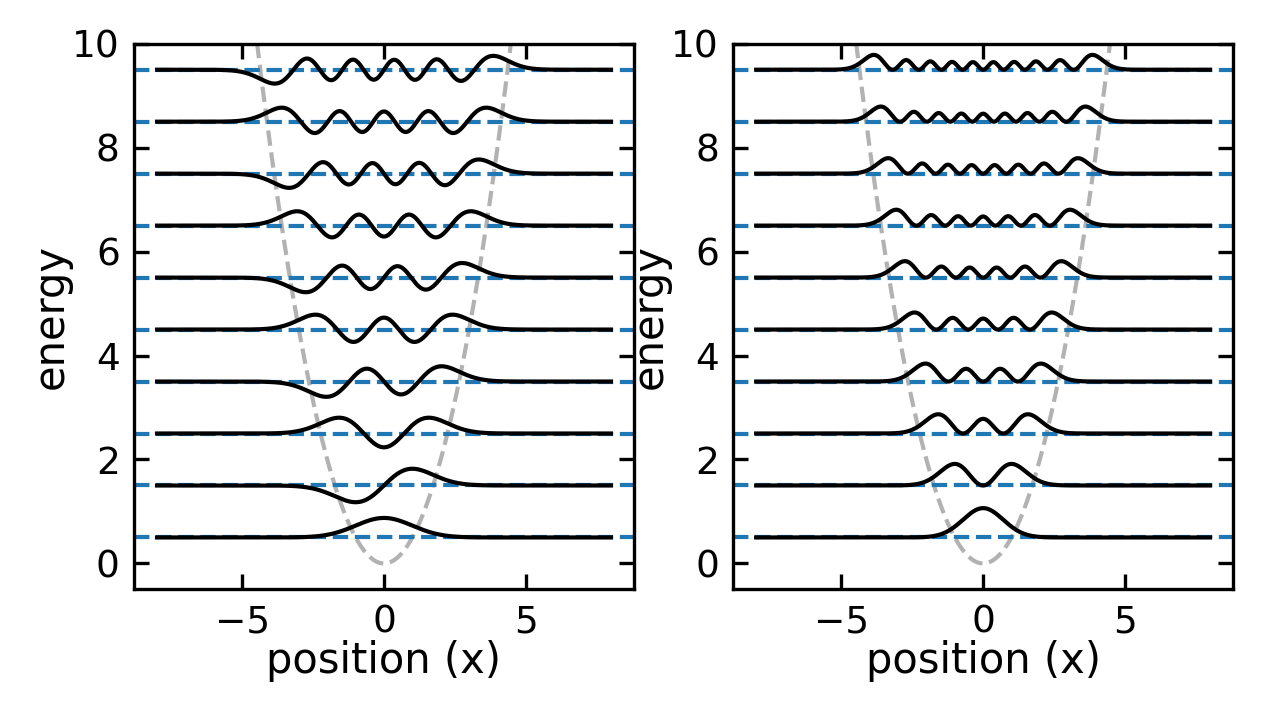

Figure 2— Probability density of the first ten wavefunctions of the quantum harmonic oscillator

In the experiment, vibrational transitions can be observed in the infrared spectrum of molecules. The energy difference between two vibrational levels is given by the energy difference between two quantum states of the harmonic oscillator. The figure below shows the rotational vibrational spectrum of HCl in the gas phase

Figure 3— Rotational side band of the vibrational transition from the ground state \(n=0\) to the excited state \(n=1\) of HCl in the gas phase.

Correspondence principle

We would like to have a look at the comparison between the classical and quantum mechanical harmonic oscillator. The classical harmonic oscillator is described by the equation of motion

\[ m \ddot{x} = - D x \]

with the solution

\[ x \left( t \right) = A \cos \left( \omega t + \varphi \right) \mathrm{.} \]

The energy of the classical harmonic oscillator is given by

\[ E = \frac{1}{2} m \dot{x}^2 + \frac{1}{2} D x^2 \]

and the maximum energy is \(E_{\mathrm{max}} = \frac{1}{2} D A^2\). The classical harmonic oscillator oscillates with the frequency \(\omega = \sqrt{\frac{D}{m}}\) and the period \(T = \frac{2\pi}{\omega}\).

According to Bohr’s correspondence principle, quantum mechanics must reduce to classical mechanics in the appropriate limit. For the harmonic oscillator, this occurs when the quantum number \(n \gg 1\). In this regime, two things happen: (1) the energy level spacing \(\Delta E = \hbar\omega\) becomes negligible compared to the total energy \(E_n \approx n\hbar\omega\), making the spectrum effectively continuous, and (2) the quantum probability distribution approaches the classical time-averaged position distribution.

For the classical harmonic oscillator, the probability to find the particle at the position \(x\) is given by the time fraction the oscillator spends at this position \(x\) in an interval \(dx\). We can calculate this probability by considering how long the particle dwells near each position during one complete oscillation.

During one period \(T = 2\pi/\omega\), the particle passes through each position \(x\) (within the classical turning points) exactly twice — once moving in each direction. The time spent in an interval \(dx\) during each pass is \(dt = dx/|v(x)|\). Therefore, the total time spent near position \(x\) per period is:

\[ \Delta t = \frac{2 \, dx}{|v(x)|} \]

The probability density is this time fraction divided by the period:

\[ P(x) \, dx = \frac{\Delta t}{T} = \frac{2}{T} \cdot \frac{dx}{|v(x)|} = \frac{\omega}{\pi} \cdot \frac{dx}{|v(x)|} \]

where we used \(T = 2\pi/\omega\). Given the solution above, the speed of the particle is \(v\left( t \right) = -A \omega \sin \left( \omega t + \varphi \right)\). To obtain a time-independent probability density, we must express the velocity as a function of position rather than time. From the position equation \(x = A \cos(\omega t + \varphi)\), we have \(\cos(\omega t + \varphi) = x/A\). Using the trigonometric identity \(\sin^2 + \cos^2 = 1\):

\[ \sin(\omega t + \varphi) = \pm\sqrt{1 - \cos^2(\omega t + \varphi)} = \pm\sqrt{1 - \frac{x^2}{A^2}} \]

The magnitude of the velocity as a function of position is therefore:

\[ |v(x)| = A\omega\sqrt{1 - \frac{x^2}{A^2}} = \omega\sqrt{A^2 - x^2} \]

Since the particle passes each position twice per period (once moving left, once moving right), the properly normalized classical probability density becomes:

\[ P_{\mathrm{cl}}(x) = \frac{1}{\pi\sqrt{A^2 - x^2}} \quad \text{for } |x| \leq A \]

This is the classical probability density, which diverges at the turning points \(x = \pm A\) where the particle momentarily stops (\(v = 0\)) and spends the most time.

With a given quantum number \(n\), the amplitude \(A\) of the classical oscillator must be chosen to match the energy of the quantum state. Since the energy of the quantum state is \(E_n = \hbar \omega(n + \frac{1}{2})\) and the maximum energy of the classical oscillator is \(E_{\mathrm{max}} = \frac{1}{2} D A^2\), we can equate these:

\[ \hbar \omega(n + \frac{1}{2}) = \frac{1}{2} D A^2 \]

Using \(\omega = \sqrt{D/m}\), we can solve for the amplitude:

\[ A = \sqrt{\frac{2\hbar}{m\omega}(n + \frac{1}{2})} = \sqrt{2n + 1} \cdot \sqrt{\frac{\hbar}{m\omega}} \]

In our dimensionless units where \(\hbar = m = \omega = 1\), this simplifies to \(A = \sqrt{2n + 1}\). This relationship ensures that the classical motion has the same energy as the quantum state, which is crucial for comparing the classical and quantum probability distributions.

def psi_n(x, n):
    N = 1.0/np.sqrt(2**n * math.factorial(n) * np.pi**0.5)
    H = hermite(n)
    return N * H(x) * np.exp(-x**2/2)

# Create figure with three subplots for different n values
fig, axes = plt.subplots(1, 3, figsize=get_size(14, 5))

n_values = [0, 10, 100]
titles = ['n = 0 (ground state)', 'n = 10', 'n = 100 (classical limit)']

for ax, n, title in zip(axes, n_values, titles):
    A = np.sqrt(2*n + 1)  # Classical amplitude matching quantum energy
    x = np.linspace(-A-2, A+2, 2000)

    # Quantum probability density
    psi = psi_n(x, n)
    P_quantum = np.abs(psi)**2
    ax.plot(x, P_quantum, "k-", label='Quantum', linewidth=0.8)

    # Classical probability density
    mask = np.abs(x) < A * 0.999  # Avoid singularity at turning points
    P_classical = np.zeros_like(x)
    P_classical[mask] = 1 / (np.pi * np.sqrt(A**2 - x[mask]**2))
    ax.plot(x, P_classical, 'r--', label='Classical', linewidth=1.5)

    # Mark classical turning points
    ax.axvline(A, color='gray', linestyle=':', alpha=0.5)
    ax.axvline(-A, color='gray', linestyle=':', alpha=0.5)

    ax.set_xlabel('position (x)')
    ax.set_ylabel('probability density')
    ax.set_title(title)
    ax.legend()

    # Set appropriate y-limits
    if n == 0:
        ax.set_ylim(0, 0.6)
    elif n == 10:
        ax.set_ylim(0, 0.25)
    else:
        ax.set_ylim(0, 0.15)

plt.tight_layout()
plt.show()

Figure 4— Comparison of quantum and classical probability densities for the harmonic oscillator at different quantum numbers n. The quantum probability density (black) oscillates rapidly, but its envelope converges to the classical distribution (red dashed) as n increases.

The figure above illustrates the correspondence principle across different quantum numbers:

• n = 0 (ground state): The quantum probability density is a Gaussian centered at \(x = 0\), which is strikingly different from the classical prediction. Classically, a particle spends the least time at the center (where it moves fastest) and the most time near the turning points (where it slows down). The quantum ground state shows the opposite behavior — maximum probability at the center. This is a purely quantum mechanical effect with no classical analogue.

• n = 10: An intermediate case where quantum oscillations are visible, but the overall envelope begins to resemble the classical distribution. Note that the quantum probability extends slightly beyond the classical turning points (gray dotted lines) — this is quantum tunneling into the classically forbidden region.

• n = 100: The quantum probability density oscillates rapidly, but its envelope closely matches the classical distribution. The oscillations themselves are a quantum interference effect, but when averaged over a small position interval (as any real measurement would do), the result agrees with classical mechanics.

This progression demonstrates that the correspondence principle does not require exact agreement between quantum and classical predictions. Rather, it states that quantum mechanics reproduces classical results when the quantum oscillations become too rapid to resolve — either because of limited measurement precision or because one averages over many oscillation periods.

Cooling of micro-mechnical oscillators

Figure 5— a, False-colour scanning electron micrograph of a spoke-anchored toroidal resonator 31 µm in diameter used for the optomechanical experiments reported in this work. b, Sketch of an optical whispering gallery mode in the microresonator (colours indicate optical phase). c, Simulated displacement (exaggerated for clarity) of the fundamental radial breathing mode of the structure. d, Equivalent optomechanical Fabry–Pérot cavity: quantum-coherent coupling is achieved when the enhanced coupling rate Ωc is comparable to or exceeds the optical and mechanical decoherence rates . Owing to the large asymmetry between mechanical and optical frequencies, the occupancies of the two environments are widely different. ( taken from Quantum-coherent coupling of a mechanical oscillator to an optical cavity mode)

Analogy to Gaussian beam optics

After understanding the quantum harmonic oscillator, we can explore a fascinating analogy in classical optics. The same mathematical structure appears in the description of Gaussian light beams in optical resonators, providing an elegant example of how similar mathematics describes different physical phenomena.

The Paraxial Wave Equation

For a light beam propagating primarily along the z-direction, the electric field must satisfy the paraxial wave equation:

\[ \frac{\partial^2E}{\partial x^2} + \frac{\partial^2E}{\partial y^2} + 2ik\frac{\partial E}{\partial z} = 0 \]

This equation, also known as the paraxial Helmholtz equation, has as its fundamental solution the Gaussian beam in free space. We can separate the rapidly varying phase by writing:

\[ E(x,y,z) = u(x,y,z)e^{-ikz} \]

where \(u(x,y,z)\) describes the spatial structure of the beam and varies slowly with \(z\).

The solution is a Gaussian beam:

#

w0 = 1e-6  # beam waist radius
wavelength = 532e-9  # wavelength
k = 2*np.pi/wavelength  # wave number
z_R = np.pi * w0**2 / wavelength  # Rayleigh range

# Create coordinate grid
z = np.linspace(-2*z_R, 2*z_R, 400)
x = np.linspace(-5*w0, 5*w0, 400)
Z, X = np.meshgrid(z, x)

# Calculate beam width
w = w0 * np.sqrt(1 + (Z/z_R)**2)

# Calculate radius of curvature
R = Z * (1 + (z_R/Z)**2)
R[Z == 0] = np.inf  # Handle division by zero at z=0

# Calculate Gouy phase
gouy_phase = np.arctan(Z/z_R)

# Calculate complete phase
phase = k*Z - gouy_phase + k*(X**2)/(2*R)

# Calculate complete complex field
E = (w0/w) * np.exp(-X**2/w**2) * np.exp(1j*phase)

# Plot the real part of the field to show wavefronts
plt.figure(figsize=get_size(14, 6))
plt.imshow(np.real(E), extent=[z.min()/z_R, z.max()/z_R, x.min()/w0, x.max()/w0],
           aspect='auto', cmap='seismic')
plt.colorbar(label=r'$Re(E)$')
plt.xlabel(r'$z/z_R$')
plt.ylabel(r'$x/w_0$')
plt.show()

Figure 6— Electric Field of a Gaussian Beam in a Parabolic Resonator

Resonator with Parabolic Mirrors

When we consider a resonator with parabolic mirrors, the boundary conditions lead to an equation for \(u\) that is mathematically equivalent to the Schrödinger equation for a 2D harmonic oscillator:

\[ 2ik\frac{\partial u}{\partial z} + \frac{\partial^2u}{\partial x^2} + \frac{\partial^2u}{\partial y^2} - k^2(x^2 + y^2)u = 0 \]

The correspondence between the two systems becomes clear when we identify:

• The propagation distance \(z\) plays the role of time \(t\)
• The wave number \(k\) corresponds to \(m/\hbar\)
• The beam width parameter relates to the oscillator frequency \(\omega\)

Hermite-Gaussian Solutions

Just as the quantum harmonic oscillator has solutions involving Hermite polynomials, the optical resonator supports Hermite-Gaussian modes:

\[ u_{mn}(x,y,z) = H_m(\sqrt{2}x/w(z))H_n(\sqrt{2}y/w(z))e^{-\frac{x^2+y^2}{w^2(z)}} \]

These modes form a complete set of solutions, analogous to the energy eigenstates of the quantum oscillator. The physical meaning differs: instead of describing probability distributions, these functions describe the spatial distribution of the electric field.

def hermite_gaussian_2d(x, y, m, n, w0=1.0):
    """Generate 2D Hermite-Gaussian mode."""
    Hm = hermite(m)
    Hn = hermite(n)

    # Normalized coordinates
    X = np.sqrt(2) * x / w0
    Y = np.sqrt(2) * y / w0

    # Mode calculation
    mode = (Hm(X) * Hn(Y) *
           np.exp(-(X**2 + Y**2)/2))

    return mode**2  # Return intensity distribution

# Create coordinate grid
x = np.linspace(-2, 2, 100)
y = np.linspace(-2, 2, 100)
X, Y = np.meshgrid(x, y)

# Create subplot grid
fig, axs = plt.subplots(4, 4, figsize=get_size(12, 12))

# Generate modes
for m in range(4):
    for n in range(4):
        intensity = hermite_gaussian_2d(X, Y, m, n)
        im = axs[m, n].imshow(intensity, cmap='gray', extent=[-2, 2, -2, 2])
        axs[m, n].set_title(f'TEM{m}{n}')
        axs[m, n].axis('off')

plt.tight_layout()
plt.show()

Figure 7— Intensity distribution of the first 16 Hermite-Gaussian modes

Physical Interpretation

The analogy provides physical insights in both directions:

1. The confinement of light by the resonator mirrors creates discrete modes, similar to the quantized energy levels
2. The beam’s width oscillations correspond to the classical oscillatory motion
3. Higher-order modes show more complex spatial patterns, just as excited states have more nodes

This mathematical similarity has practical implications in laser physics and helps explain why Gaussian beams are so fundamental in optics, just as the harmonic oscillator is fundamental in quantum mechanics.
