Superresolution microscopy comprises a collection of techniques that overcome the classical diffraction limit of optical microscopy, enabling visualization of cellular structures below \(\sim 200\) nm with far-field light microscopy. This lecture explores:
Why the diffraction limit exists and can be broken
The main physical principles behind STED, SMLM, SIM, and MINFLUX
How photophysics (fluorescence, photoswitching, saturation) enables resolution enhancement
Practical trade-offs: resolution, speed, phototoxicity, and labeling
Computational reconstruction from limited photon data
By the end of this lecture, you will understand the physical foundations of modern superresolution methods and appreciate the ingenuity of breaking a 150-year-old fundamental limit.

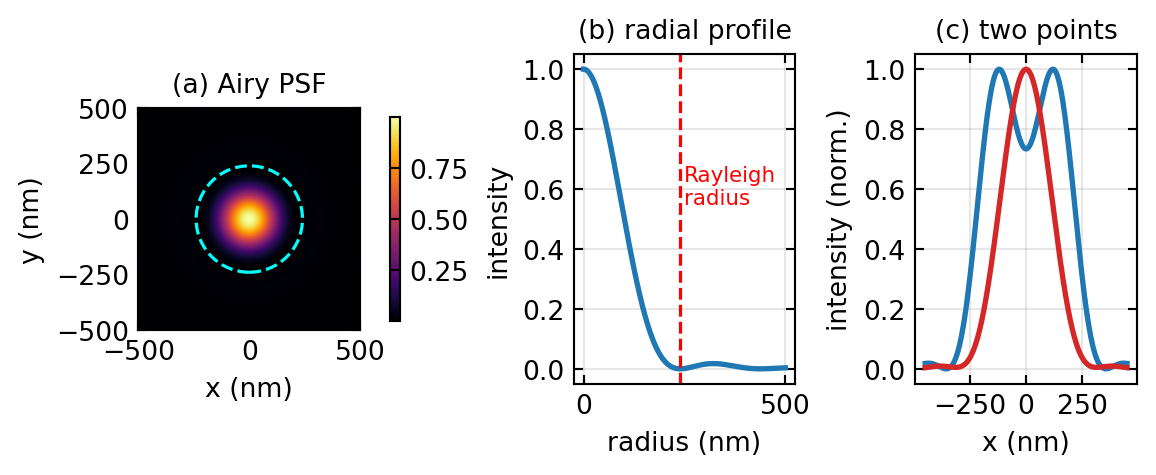

1. The Diffraction Limit Revisited
1.1 Why the Limit Exists
In conventional microscopy, the point-spread function (PSF) dictates the minimum resolvable distance between two point sources. The PSF is determined by diffraction at the objective lens aperture.
For a circular aperture of numerical aperture \(\text{NA}\), illuminated with light of wavelength \(\lambda\), the intensity distribution follows an Airy disk pattern:
where \(u = \frac{\pi r}{\lambda/(2\text{NA})}\) is the normalized radial coordinate, and \(J_1\) is the Bessel function of the first kind.
1.2 Abbe and Rayleigh Criteria
Two classical criteria quantify the resolution limit:
Abbe criterion (derived from diffraction theory): \[d_{\text{Abbe}} = \frac{\lambda}{2 \text{NA}}\]
For visible light (\(\lambda \approx 500\) nm) and a high-NA objective (\(\text{NA} = 1.4\) oil immersion), we obtain: \[d_{\text{Abbe}} \approx \frac{500\text{ nm}}{2 \times 1.4} \approx 180\text{ nm}\]
Rayleigh criterion (two point sources are just resolved when the maximum of one Airy disk coincides with the first minimum of the other): \[d_{\text{Rayleigh}} = 0.61 \frac{\lambda}{\text{NA}} \approx 220\text{ nm (visible)}\]
1.3 Physical Root Cause
The diffraction limit arises from two fundamental constraints:
Finite numerical aperture: The microscope objective only collects light within a cone of half-angle \(\theta = \sin^{-1}(\text{NA}/n)\). This limits the k-vectors available in the far field.
Wavelength: Diffraction is inversely proportional to wavelength. Shorter wavelengths (UV, X-rays) can achieve better resolution but come with photodamage and experimental challenges.
A point source is described by all spatial frequencies up to \(k_{\max} = 2\pi \text{NA} / \lambda\) in the pupil plane. Frequencies beyond this cutoff are evanescent in the far field and cannot be collected by a conventional objective.
1.4 Practical Implications
Lateral resolution (xy-plane, perpendicular to optical axis): \(\sim 200\) nm
Axial resolution (z-direction, along optical axis): \(\sim 500\) nm (worse by ~2.5×)
Typical cell nucleus diameter: \(\sim 5\) µm (so diffraction-limited microscopy resolves structures ~25× larger than a nucleus)
Many protein complexes (\(\sim 10\)–\(50\) nm) and synaptic ultrastructure (\(\sim 50\)–\(200\) nm) lie below the diffraction limit
This motivated decades of ingenious schemes to beat the limit while using conventional far-field optics.
2. Strategies to Break the Limit
2.1 Far-Field vs. Near-Field Approaches
Superresolution strategies fall into two broad categories:
Far-field superresolution (main focus of this lecture): - Exploits nonlinear fluorescence response or clever use of propagating waves - Can work with standard confocal or widefield optics - Examples: STED, PALM/STORM, SIM, MINFLUX - Advantage: faster, deeper penetration, better signal - Disadvantage: requires saturating fluorophore properties or clever photophysics
We focus on far-field superresolution because: - It is more practical for live-cell imaging - It leverages modern fluorescence microscopy infrastructure - It illustrates deep principles of nonlinear optics and information theory
2.2 Core Principle: Nonlinear Optical Response
All far-field superresolution methods exploit nonlinearity:
\[\text{Fluorescence intensity} \neq \text{(linear function of excitation intensity)}\]
When a fluorophore is saturated or driven to a special state (off, on, red-shifted), the fluorescence response becomes:
where \(n > 1\) (nonlinearity order) and \(I_{\text{sat}}\) is the saturation intensity. This nonlinearity enables selective activation/depletion in narrow spatial regions, effectively shrinking the PSF.
3. STED: Stimulated Emission Depletion
3.1 Physical Principle
STED microscopy was invented by Stefan Hell (Nobel Prize 2014) and works by the following mechanism:
Excitation pulse (488 nm, for example): excites fluorophores to the excited state \(S_1\) within the diffraction-limited volume.
STED pulse (longer wavelength, e.g., 592 nm for red dyes): delivered as a doughnut-shaped beam (zero intensity at the center, high intensity in an annulus).
Stimulated emission: The STED photons induce stimulated emission from \(S_1 \to S_0\), forcing fluorophores to relax non-radiatively.
Depletion: Only fluorophores at the center of the doughnut (where STED intensity is zero) can fluoresce. All others are depleted.
The effective PSF shrinks because fluorescence is suppressed outside the depletion-free zone.

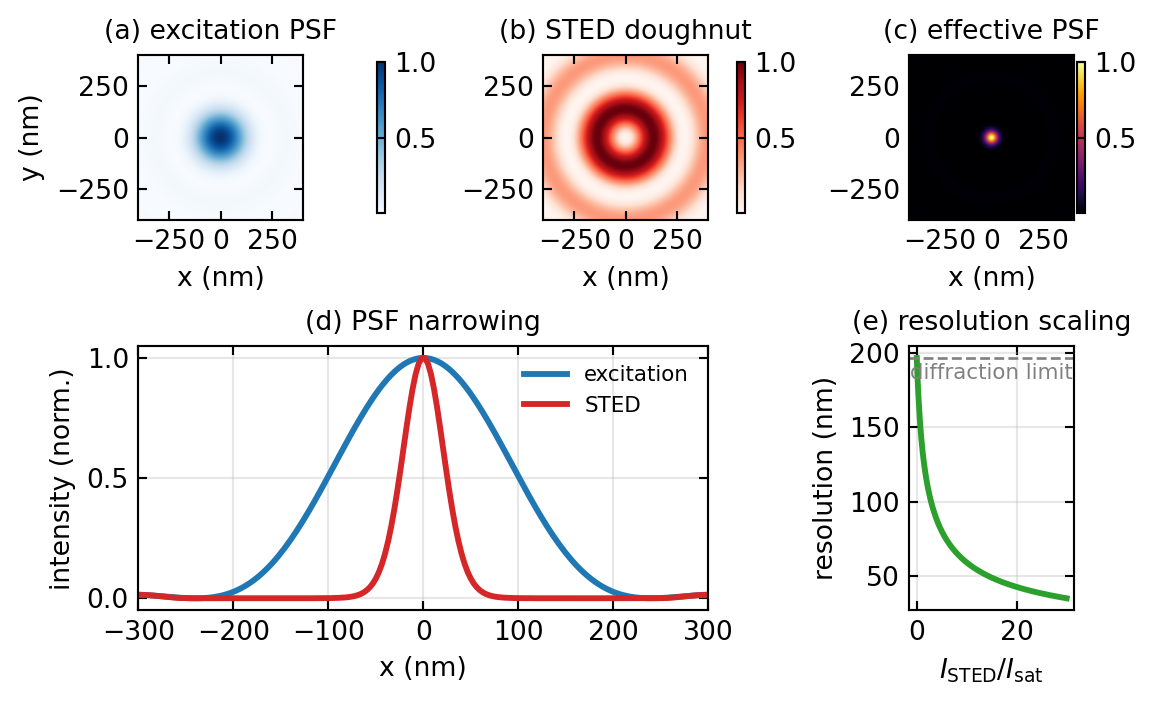

3.2 Effective PSF and Resolution
The excitation PSF is the diffraction-limited Airy disk: \[\text{PSF}_{\text{exc}} \propto \left[ \frac{2 J_1(u)}{u} \right]^2\]
The depletion efficiency depends on STED intensity \(I_{\text{STED}}(x,y)\) and the transition cross-section \(\sigma_{\text{stim}}\):
Key insight: By increasing \(I_{\text{STED}}\), the depletion factor \(\sqrt{1 + I_{\text{STED}}/I_{\text{sat}}}\) grows, reducing \(d_{\text{STED}}\) arbitrarily (in principle). With high saturation, sub-50 nm resolution is achievable.
3.3a Fourier Optics Perspective
In Fourier space, STED effectively extends the optical transfer function (OTF) beyond the diffraction-limited cutoff frequency \(2\text{NA}/\lambda\). The narrower effective PSF (from nonlinear depletion) corresponds to a wider, extended OTF in frequency space, recovering spatial frequencies that would normally be lost to evanescence. This is why STED can resolve features smaller than the diffraction limit: the nonlinear response fundamentally changes which frequencies are accessible to the microscope.
3.4 Trade-offs
Pro: Fast scanning, volumetric (3D with appropriate phase mask), direct detection (no reconstruction), live-cell capable
Con: High STED intensity → phototoxicity and phototranslation (sample damage), requires red-shifted dyes, complex optics (doughnut mask, phase plate)
3.5 Doughnut Beam Generation
The doughnut (azimuthal phase modulation) is typically generated by:
Vortex plate (spatial light modulator or diffractive optic): imparts a phase ramp \(e^{i m \phi}\) (usually \(m=1\))
Result: conversion from Gaussian TEM\(_{00}\) to a doughnut-like Laguerre-Gaussian beam with orbital angular momentum
4. Single-Molecule Localization Microscopy (SMLM)
4.1 Core Idea: Temporal Separation
SMLM (PALM, STORM, fSTORM) exploits a radically different approach:
Stochastic switching: Only a small, random subset of fluorophores is active (on) at any given time.
Sparse sampling: Since few molecules fluoresce simultaneously, their PSFs don’t overlap, allowing individual molecule localization.
Repeating: Cycle on/off many times to build up a superresolved image from single-molecule localizations.
Mathematically, the fluorescence signal at position \((x, y)\) in frame \(n\) is:
where: - \(a_i^{(n)}\) = on/off state of molecule \(i\) in frame \(n\) - \(M\) = total number of molecules - PSF = diffraction-limited point-spread function
4.2 Localization Precision
For a single bright molecule with \(N\) photons detected in its PSF, the localization uncertainty (from the Cramér-Rao bound) is:
where the Fisher information depends on photon count \(N\), PSF shape, and background. This explains why: - More photons → better precision (as \(1/\sqrt{N}\)) - Brighter dyes → better precision - Lower background → better precision
4.7 Fourier Optics Perspective
Unlike STED or SIM, SMLM (PALM/STORM) does not directly extend the OTF in the classical diffraction-limit sense. Instead, it circumvents the OTF constraint by detecting individual molecules sequentially and reconstructing their positions computationally. Each localized molecule contributes a point in the final image; the achievable resolution is determined by the localization precision (\(\sigma \propto 1/\sqrt{N}\)), not by the OTF cutoff. In this sense, SMLM is a nonlinear inverse problem: rather than measuring the object’s Fourier spectrum directly, it extracts spatial information through single-molecule localization. The effective “resolution” is thus fundamentally different from traditional diffraction-limited concepts—it reflects the precision with which individual emitters can be positioned, independent of the microscope’s diffraction-limited OTF.
5. Structured Illumination Microscopy (SIM)
5.1 Linear SIM: 2× Resolution Improvement
We briefly reviewed SIM in Section 0.2 (Lecture 10). Here we recap in the superresolution context.
Principle: Illuminate the sample with a spatially periodic pattern (sinusoidal fringe):
where \(k_{\text{pattern}} \approx 2 \pi \text{NA} / \lambda\) is the grating wavevector and \(\alpha\) is the modulation depth.
5.1a The Moiré Effect and Frequency Mixing
When a structured illumination pattern is superimposed on a fine sample structure (e.g., closely spaced fluorophores), the product creates a Moiré pattern—a low-frequency interference pattern whose contrast encodes high-frequency information. This is the key to SIM: by mixing the sample’s high-frequency structure (\(\tilde{O}(\mathbf{k})\)) with the illumination’s low-frequency pattern via multiplication in real space, we create sum and difference frequencies in Fourier space.
Mathematically, the measured fluorescence intensity is:
where \(O(\mathbf{r})\) is the object and \(I_{\text{illum}}(\mathbf{r})\) is the sinusoidal illumination pattern. In Fourier space, multiplication becomes convolution:
This shows explicitly how the illumination pattern shifts copies of the object spectrum by \(\pm \mathbf{k}_{\text{ill}}\), bringing previously evanescent high frequencies into the observable region. By acquiring multiple phase-shifted images and computationally separating these terms, SIM recovers spatial frequencies up to \(2|\mathbf{k}_{\text{ill}}|\), doubling the resolution.
5.2 Frequency-Domain Picture
In the Fourier domain, the detected fluorescence has contributions at: - \(k = 0\) (DC, unmodulated emission) - \(k = \pm k_{\text{pattern}}\) (first-order fringes from beating of illumination and sample structure)
Normally, spatial frequencies \(|k| > 2\pi \text{NA}/\lambda\) are evanescent (lost). But the illumination pattern creates sum and difference frequencies that shift high-frequency information into the observable range.
By rotating the grating orientation and varying the phase \(\phi\) (typically 5 different angles × 3 phases = 15 raw images), we recover spatial frequencies up to \(|k| \sim 4\pi \text{NA}/\lambda\), doubling the resolution:
5.2a Practical Implementation: Phase Shifts and Orientations
To extract the shifted frequency components \(\tilde{O}(\mathbf{k} \pm \mathbf{k}_{\text{ill}})\) from the measured data, we acquire multiple images with different illumination phases and grating orientations:
Phase shifts: At each grating orientation, acquire 3–4 images with phase shifts \(\phi = 0, 2\pi/3, 4\pi/3\) (or more). This allows separation of the DC term and the ±\(\mathbf{k}_{\text{ill}}\) components.
Grating orientations: Rotate the grating through several angles (typically 3–5 orientations, e.g., 0°, 60°, 120°) to capture high-frequency information in multiple directions.
Total acquisition: For 2D SIM, ~9–15 raw images are typically required per z-section (5 orientations × 3 phases = 15 images). For 3D, this is repeated across multiple z-planes.
In post-processing, computational deconvolution separates the frequency components and reconstructs an extended-bandwidth image, revealing features \(\sim 100\) nm for visible light (2× improvement over diffraction limit).

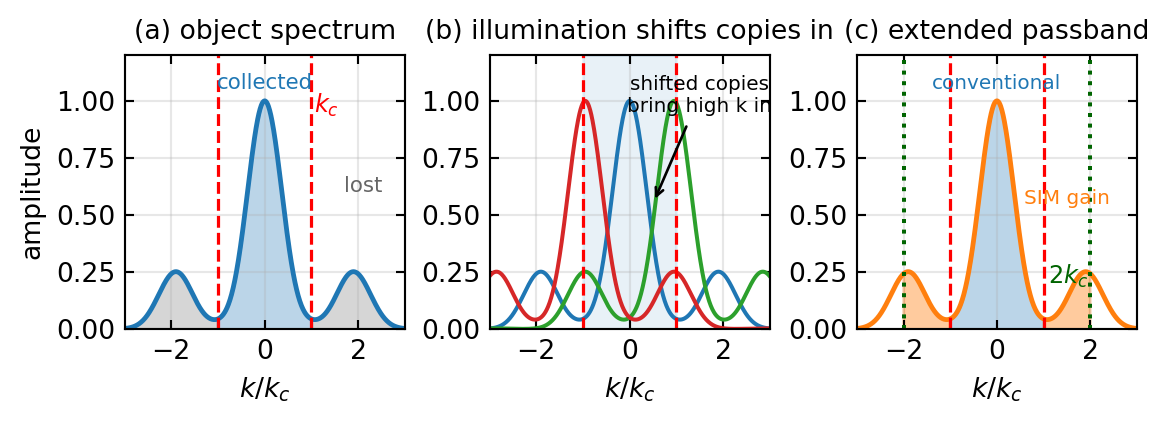

5.2b SIM Frequency-Domain Visualization
The following code demonstrates how SIM extends the frequency passband by shifting copies of the object spectrum:
SIM frequency mixing: illumination pattern shifts copies of the object spectrum into the observable passband. Panel 1: Object spectrum (blue shaded) with OTF cutoff (red dashed). Panel 2: Illumination pattern in Fourier space (green bars) with OTF cutoff (red dashed). Panel 3: Measured intensity after frequency mixing (purple shaded), with orange-shaded regions indicating high-frequency info shifted into the passband. Panel 4: SIM reconstruction (orange) compared to the original object spectrum (blue dashed), showing the extended passband (dark green dotted) reaching approximately twice the original OTF cutoff (red dashed).
5.3 Nonlinear SIM / Saturated SIM
Further improvement comes from saturation of the fluorescence:
\[F(I) = \frac{I}{1 + I/I_{\text{sat}}}\]
This nonlinearity generates higher harmonics in the illumination pattern: \[I_{\text{illum}} = I_0 [1 + \alpha \cos(k_{\text{pattern}} x)]\]\[F(I_{\text{illum}}) \approx F_0 + F_1 \cos(k_{\text{pattern}} x) + F_2 \cos(2 k_{\text{pattern}} x) + \cdots\]
The second harmonic \(\cos(2 k_{\text{pattern}} x)\) contains information at \(2 k_{\text{pattern}}\), further increasing frequency resolution. With multiple harmonics accessible through saturation, resolution can approach:
Trade-off: Requires high saturation intensity and photon budget; can cause photodamage.
5.4 Advantages of SIM
Works with conventional fluorophores (no special photophysics)
Parallelized detection (widefield), so fast imaging (\(\sim 100\) ms per 3D stack)
Live-cell compatible (low phototoxicity in linear regime)
Intuitive Fourier interpretation
5.5 Disadvantages
Requires computational reconstruction (deconvolution of illumination pattern)
Artifacts if pattern not perfectly calibrated
2× improvement is modest (3–5 nm for visible light)
Requires high signal-to-noise for robust frequency shifting
6. MINFLUX: Minimal Photon Fluxes
6.1 Motivation: Extreme Photon Efficiency
MINFLUX (developed by Stefan Hell’s group, 2017–2021) is a paradigm shift: instead of collecting many photons and localizing to high precision, use minimal photon fluxes (few photons per molecule) with clever beam geometry.
Key insight: The spatial information is encoded not in the number of photons but in their spatial distribution pattern.
6.2 Principle: Doughnut Scanning
Excitation beam: A donut (doughnut) with zero intensity at the center
Sample: Scanned through the donut via piezo stage (or beam scan)
Detection: Bright fluorescence when molecule is off-axis (in the annulus), minimum when on-axis (at the hole)
Inference: The dip in fluorescence signal vs. lateral position reveals the molecule position with sub-nm precision
Mathematically, the fluorescence detected as a function of doughnut position is:
\[F(x, y) = N \times \text{Doughnut}(x, y)\]
where \(N\) is the number of photons and Doughnut\((x,y)\) is the normalized beam intensity.
The position of the minimum in the measured signal directly reports the molecule position. Scanning the donut through the region and recording the 2D fluorescence map gives a “negative image” of the PSF.
6.3 Localization Precision with Few Photons
Even with just \(N \sim 50\)–\(100\) photons, the doughnut geometry and sharp intensity gradients allow localization to:
This is achieved because: 1. High gradient at the doughnut minimum: \(\frac{d I_{\text{donut}}}{d x} \gg 0\) 2. Photons are concentrated where they matter most (edges of the donut, not the center) 3. Information content is maximized per photon
6.4 3D MINFLUX
By adding a z-dependent modulation to the doughnut (e.g., astigmatism or helical phase), axial position can also be encoded. Result: 3D localization at nm-scale precision with few photons.
6.5 Advantages
Extraordinary photon efficiency: \(\sim 5\) nm precision with 50 photons (vs. SMLM needing 1000 photons for similar precision)
Ultra-low phototoxicity: Minimal excitation light
Fast: Can be implemented in volume-scanning geometry
No photobleaching artifacts: Since fewer photons needed, molecule survives longer
6.6 Disadvantages
Requires scanning (not widefield); slower per frame but still fast for many molecules
Scanning stage (piezo) must be very precise and fast
where \(\sigma_i\) is the localization precision of molecule \(i\). Pixel size should be much smaller than localization precision (typically \(\sim \sigma_{\text{loc}}/5\)) to avoid undersampling.
9. Python Demonstrations
Demo 1: Diffraction Limit and Two-Point Resolution
Code
# Demo 1: Point-spread function and two-point resolutionimport numpy as npimport matplotlib.pyplot as pltfrom scipy import special# Parameterswavelength =550e-9# 550 nm (green light)NA =1.4# oil immersionpixel_size =10e-9# 10 nm pixels# PSF calculationdef airy_disk(r, wavelength, NA):"""Intensity of Airy disk as function of radial distance r.""" u = np.pi * r / (wavelength / (2* NA)) u = np.atleast_1d(u)with np.errstate(divide='ignore', invalid='ignore'): I = (2* special.j1(u) / u) **2 I[u ==0] =1.0return I# Create 2D spatial gridx = np.linspace(-400e-9, 400e-9, 200) # -400 to 400 nmy = x.copy()X, Y = np.meshgrid(x, y)r = np.sqrt(X**2+ Y**2)# Compute Airy diskI = airy_disk(r, wavelength, NA)# Diffraction limit (Abbe)d_abbe = wavelength / (2* NA)# Plotfig, axes = plt.subplots(1, 3, figsize=get_size(14, 5), layout='constrained')# PSF heatmapim = axes[0].contourf(X*1e9, Y*1e9, I, levels=20, cmap='hot')axes[0].axhline(d_abbe*1e9, color='cyan', linestyle='--', linewidth=2, label=f'd_Abbe = {d_abbe*1e9:.0f} nm')axes[0].axvline(d_abbe*1e9, color='cyan', linestyle='--', linewidth=2)axes[0].set_xlabel('x (nm)')axes[0].set_ylabel('y (nm)')axes[0].set_aspect('equal')# 1D sliceaxes[1].plot(r[100, :]*1e9, I[100, :], 'b-', linewidth=2, label='Airy disk profile')axes[1].axvline(d_abbe*1e9, color='red', linestyle='--', linewidth=2, label=f'd_Abbe = {d_abbe*1e9:.0f} nm')axes[1].set_xlabel('Radial distance r (nm)')axes[1].set_ylabel('Intensity')axes[1].grid(True, alpha=0.3)# Two-point resolutionseparation = np.array([0, 0.5, 1.0, 1.5, 2.0]) * d_abbe *1e9# separations relative to Abbe limit# Compute PSF for two points separated in xx_points = np.linspace(-400e-9, 400e-9, 300)I_point1 = airy_disk(np.abs(x_points - (-separation[3]*1e-9/2)), wavelength, NA)I_point2 = airy_disk(np.abs(x_points - (separation[3]*1e-9/2)), wavelength, NA)axes[2].plot(x_points*1e9, I_point1 + I_point2, 'b-', linewidth=2, label=f'Separation = {separation[3]:.0f} nm')axes[2].set_xlabel('x (nm)')axes[2].set_ylabel('Total Intensity')axes[2].grid(True, alpha=0.3)plt.show()print(f"Wavelength: {wavelength*1e9:.0f} nm")print(f"Numerical Aperture: {NA}")print(f"Abbe diffraction limit: {d_abbe*1e9:.1f} nm")print(f"Lateral resolution (Rayleigh): ~{0.61*wavelength/NA*1e9:.1f} nm")

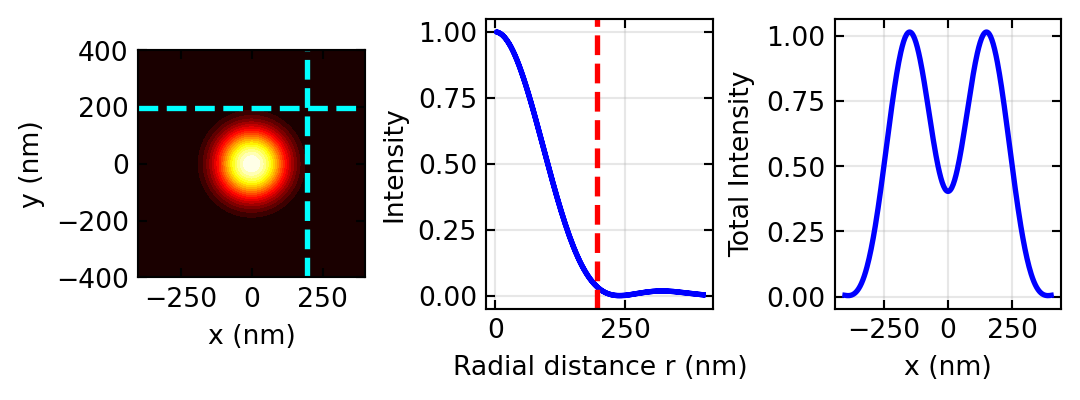

Point-Spread Function (PSF). Left: 2D Airy disk intensity pattern (hot colormap) with cyan dashed lines marking the Abbe diffraction limit. Center: 1D radial profile of the Airy disk (blue) with the Abbe limit indicated by a red dashed vertical line. Right: Summed intensity of two point sources separated by 1.5 times the Abbe limit (blue), showing the dip characteristic of the Rayleigh criterion.

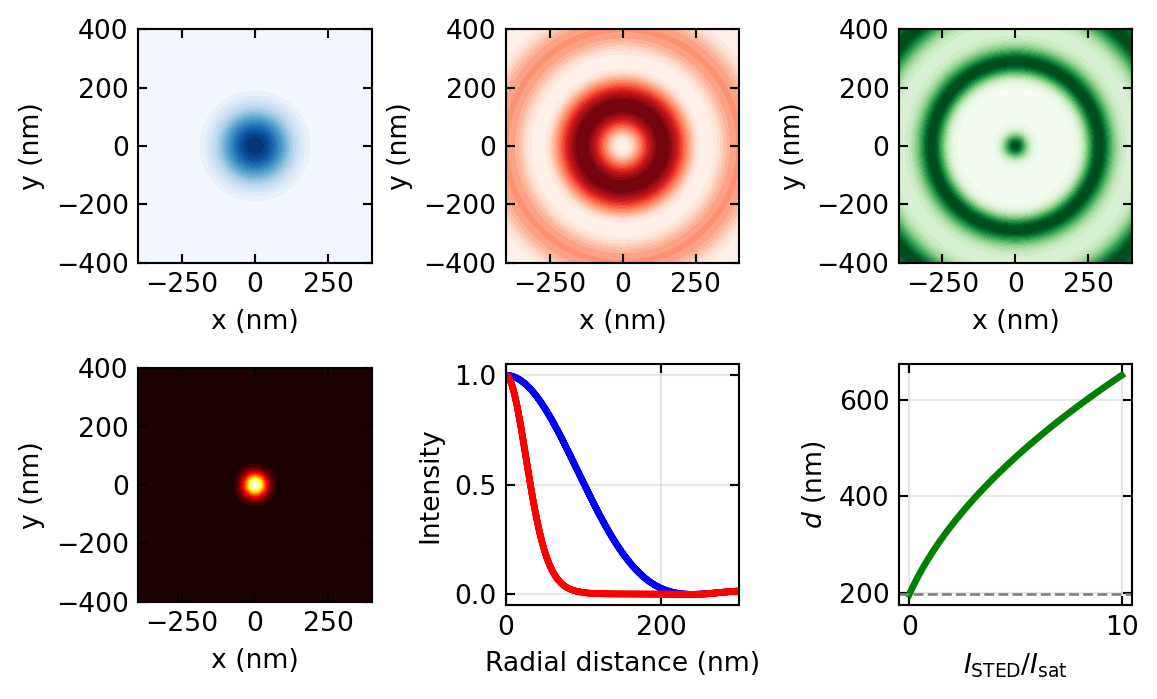

STED microscopy. Top row: Excitation PSF (blue colormap), doughnut depletion beam (red colormap), and depletion factor (green colormap). Bottom left: Effective PSF after STED depletion (hot colormap). Bottom center: 1D radial profiles comparing the excitation PSF (blue) and the narrowed effective STED PSF (red). Bottom right: Resolution (nm) vs. STED intensity normalized to saturation intensity (green curve), with the gray dashed line indicating the diffraction limit.
Demo 3: SMLM Simulation — Single-Molecule Blinking and Reconstruction
Code
# Demo 3: Single-molecule localization microscopy (SMLM) simulationimport numpy as npimport matplotlib.pyplot as pltfrom scipy import optimizefrom scipy.ndimage import gaussian_filter# Parametersnum_molecules =50# number of molecules in sampleimage_size =64# pixelspixel_size =100e-9# 100 nm per pixelnum_frames =200# frames to acquirepsf_sigma =1.5# PSF width in pixelsphotons_per_molecule =800# photons per bright moleculebackground_level =10# background photons per pixel# Create sample: random positionsnp.random.seed(42)positions = np.random.rand(num_molecules, 2) * image_size# PSF functiondef psf_2d(y, x, y0, x0, sigma, A, bg):"""2D Gaussian PSF."""return A * np.exp(-((y - y0)**2+ (x - x0)**2) / (2* sigma**2)) + bg# Generate synthetic movie (stochastic on/off states)movie = np.zeros((num_frames, image_size, image_size))active_per_frame = np.zeros((num_frames, num_molecules), dtype=bool)for frame inrange(num_frames):# Randomly activate ~5 molecules per frame active_per_frame[frame, :] = np.random.rand(num_molecules) <5/ num_molecules# Generate image for this frame img = np.random.poisson(background_level, (image_size, image_size)).astype(float)for mol_idx inrange(num_molecules):if active_per_frame[frame, mol_idx]: y_true, x_true = positions[mol_idx]# Create PSF pattern y_idx = np.arange(image_size) x_idx = np.arange(image_size) YY, XX = np.meshgrid(y_idx, x_idx, indexing='ij') psf = psf_2d(YY, XX, y_true, x_true, psf_sigma, photons_per_molecule, 0) img += np.random.poisson(psf) movie[frame] = img# Localization algorithm: detect and localize molecules frame-by-frame# We use intensity-weighted centroid fitting (simple, fast, and pedagogically clear)localizations = []kernel_size =5for frame inrange(num_frames): img = movie[frame] threshold = background_level +3* np.sqrt(background_level) y_range = np.arange(kernel_size, image_size - kernel_size) x_range = np.arange(kernel_size, image_size - kernel_size)for y_peak in y_range[::2]: # stride for speedfor x_peak in x_range[::2]: local_patch = img[y_peak-kernel_size:y_peak+kernel_size+1, x_peak-kernel_size:x_peak+kernel_size+1]if local_patch.max() > threshold and\ local_patch.max() == img[y_peak, x_peak]:# Intensity-weighted centroid localization yy_local = np.arange(local_patch.shape[0]) xx_local = np.arange(local_patch.shape[1]) YY_local, XX_local = np.meshgrid(yy_local, xx_local, indexing='ij')# Subtract background estimate patch_bg = np.median(local_patch) patch_signal = np.maximum(local_patch - patch_bg, 0) total_signal = patch_signal.sum()if total_signal >50:# Centroid position within patch y_centroid = np.sum(YY_local * patch_signal) / total_signal x_centroid = np.sum(XX_local * patch_signal) / total_signal# Convert to global coordinates y_fit = y_peak - kernel_size + y_centroid x_fit = x_peak - kernel_size + x_centroid# Estimate photon count from total signal N_photons = total_signal# Localization uncertainty (Thompson formula) sigma_loc = psf_sigma * pixel_size / np.sqrt(N_photons) localizations.append({'y': y_fit,'x': x_fit,'photons': N_photons,'sigma_loc': sigma_loc,'frame': frame })# Reconstruct superresolved imageiflen(localizations) >0: loc_array = np.array([(loc['y'], loc['x'], loc['sigma_loc'])for loc in localizations])else: loc_array = np.zeros((0, 3))sr_image = np.zeros((image_size, image_size))pixel_size_sr = pixel_size # same as detection pixel sizefor loc in loc_array: y_loc, x_loc, sigma = loc# Paint Gaussian at this location y_idx = np.arange(image_size) x_idx = np.arange(image_size) YY, XX = np.meshgrid(y_idx, x_idx, indexing='ij') gaussian = np.exp(-((YY - y_loc)**2+ (XX - x_loc)**2) / (2* sigma**2)) sr_image += gaussian# Plotfig, axes = plt.subplots(2, 3, figsize=get_size(15, 9), layout='constrained')# Raw widefield image (average of first 5 frames)raw_avg = movie[:5].mean(axis=0)im0 = axes[0, 0].imshow(raw_avg, cmap='viridis', origin='lower')axes[0, 0].set_xlabel('x (pixels)')axes[0, 0].set_ylabel('y (pixels)')# Example single frame with bright moleculesexample_frame =50im1 = axes[0, 1].imshow(movie[example_frame], cmap='hot', origin='lower')axes[0, 1].set_xlabel('x (pixels)')axes[0, 1].set_ylabel('y (pixels)')# Histogram of localization precisionssigmas = np.array([loc['sigma_loc']*1e9for loc in localizations]) iflen(localizations) >0else np.array([0.0])axes[0, 2].hist(sigmas, bins=max(1, min(30, len(sigmas))), edgecolor='black', alpha=0.7)axes[0, 2].set_xlabel('Localization Precision (nm)')axes[0, 2].set_ylabel('Count')axes[0, 2].grid(True, alpha=0.3)# Scatter plot of localizations colored by frameframes = np.array([loc['frame'] for loc in localizations]) iflen(localizations) >0else np.array([0])scatter = axes[1, 0].scatter(loc_array[:, 1] iflen(loc_array) >0else [], loc_array[:, 0] iflen(loc_array) >0else [], c=frames iflen(loc_array) >0else [], cmap='viridis', s=1, alpha=0.5)axes[1, 0].set_xlabel('x (pixels)')axes[1, 0].set_ylabel('y (pixels)')axes[1, 0].set_xlim(0, image_size)axes[1, 0].set_ylim(0, image_size)axes[1, 0].set_aspect('equal')# Superresolved reconstructionim_sr = axes[1, 1].imshow(sr_image, cmap='hot', origin='lower')axes[1, 1].set_xlabel('x (pixels)')axes[1, 1].set_ylabel('y (pixels)')# Comparison: widefield vs. superresolved (normalized)raw_normalized = raw_avg / raw_avg.max()sr_max = sr_image.max() if sr_image.max() >0else1.0sr_normalized = sr_image / sr_maxaxes[1, 2].plot(raw_normalized[32, :], 'b-', linewidth=2.5, label='Widefield')axes[1, 2].plot(sr_normalized[32, :], 'r-', linewidth=2.5, label='Superresolved (SMLM)')axes[1, 2].set_xlabel('x (pixels)')axes[1, 2].set_ylabel('$I$ (norm.)')axes[1, 2].grid(True, alpha=0.3)plt.show()print(f"Total frames acquired: {num_frames}")print(f"Molecules in sample: {num_molecules}")print(f"Total localizations detected: {len(localizations)}")print(f"Average localizations per frame: {len(localizations) / num_frames:.1f}")print(f"Mean localization precision: {sigmas.mean():.1f} nm")print(f"Median localization precision: {np.median(sigmas):.1f} nm")

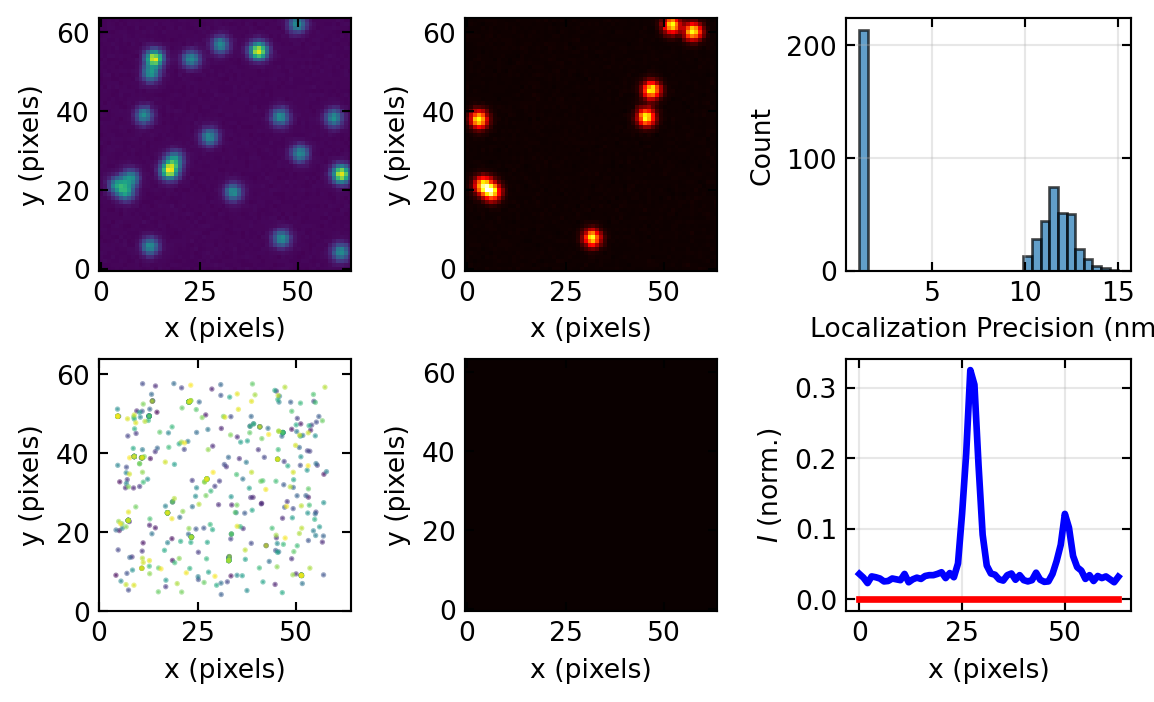

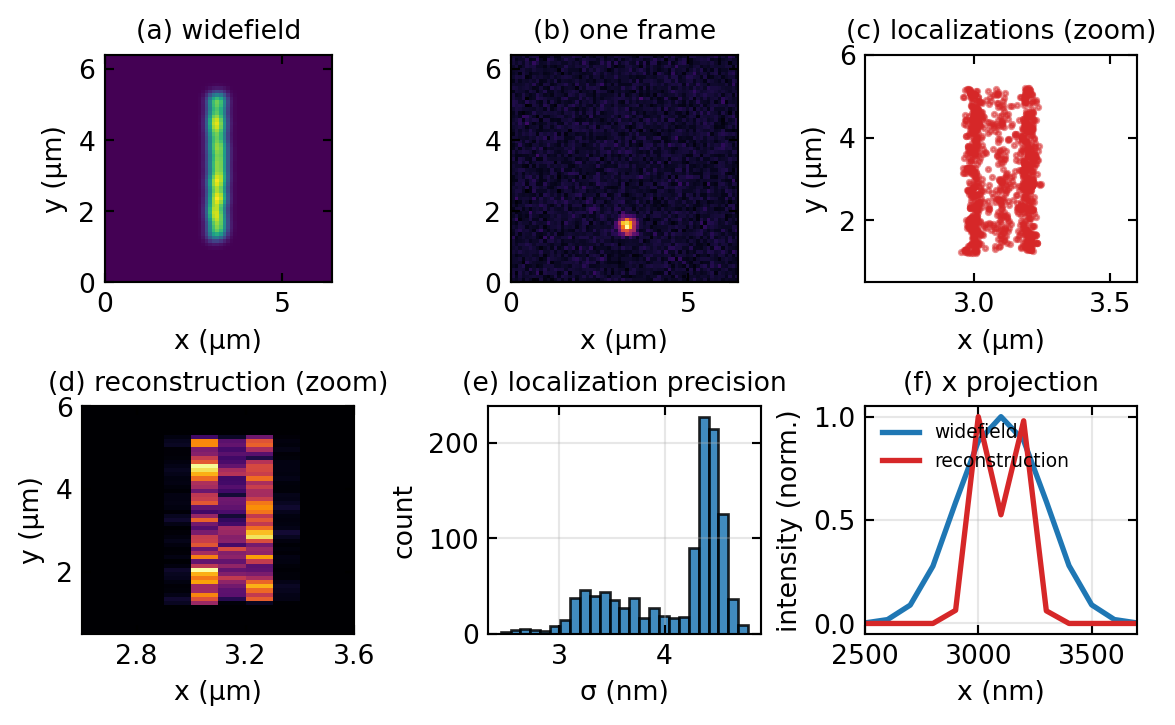

Single-molecule localization microscopy (SMLM). Top left: Average widefield image (viridis colormap). Top center: Single frame showing stochastically activated molecules (hot colormap). Top right: Histogram of localization precisions (nm). Bottom left: Scatter plot of all localizations colored by frame number (viridis colormap). Bottom center: Superresolved reconstruction (hot colormap). Bottom right: Cross-sectional intensity comparison between widefield (blue) and superresolved SMLM reconstruction (red).
Total frames acquired: 200
Molecules in sample: 50
Total localizations detected: 509
Average localizations per frame: 2.5
Mean localization precision: 7.4 nm
Median localization precision: 10.8 nm

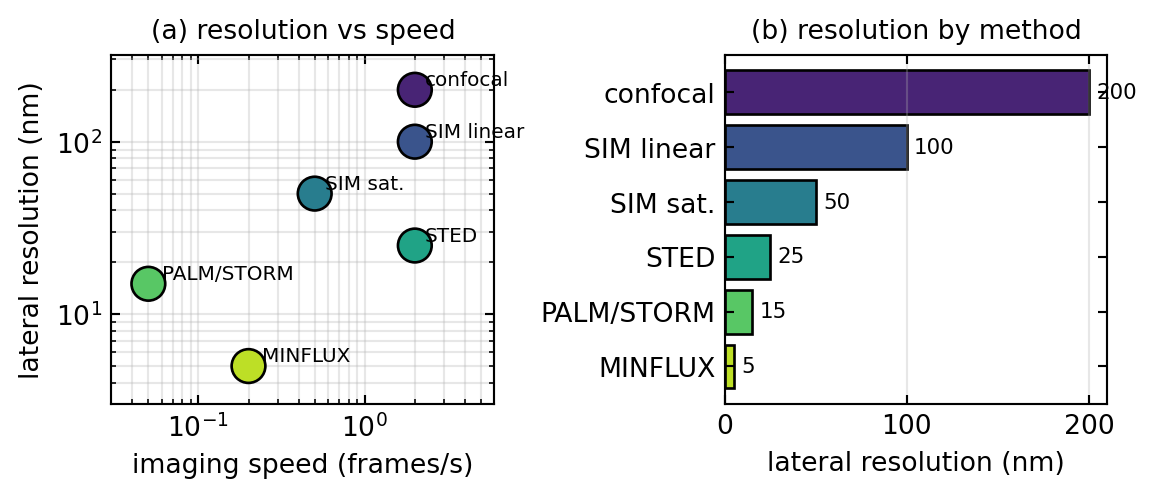

Superresolution methods comprehensive comparison. Top left: Resolution (nm) vs. speed (frames/s) on log-log axes, with each method shown as a colored dot. Top center: Resolution vs. phototoxicity (relative scale). Top right: Photon efficiency (fewer photons needed is better) as horizontal bars. Bottom left: Radar plot comparing normalized resolution, speed, and low phototoxicity for Confocal (yellow-green), SIM Linear (light green), SIM Saturated (teal), STED (salmon), PALM/STORM (lavender), and MINFLUX (pink). Bottom right: Application suitability guide.
10. Fourier Optics Thread: Superresolution Through Frequency-Space Engineering
The diverse superresolution techniques can be unified by examining how each manipulates the optical transfer function (OTF) and frequency passband:
Technique
Fourier-Space Interpretation
Diffraction limit
OTF cutoff at \(k_{\text{max}} = 2\text{NA}/\lambda\) for incoherent imaging; frequencies beyond are evanescent (lost)
SIM
Structured illumination creates frequency mixing (convolution): object spectrum is shifted by \(\pm \mathbf{k}_{\text{ill}}\), bringing high-frequency information into the passband. Effective passband extends to \(\sim 2 \times 2\text{NA}/\lambda\), yielding 2× resolution gain. Nonlinear SIM (saturation) generates harmonics, extending further.
STED
Nonlinear depletion narrows the effective PSF, which corresponds to a wider, extended OTF in frequency space. Frequencies beyond the diffraction cutoff become observable; resolution arbitrarily improvable with higher depletion intensity.
PALM/STORM
Bypasses the classical OTF framework: single-molecule localization extracts spatial information through sequential detection and computational reconstruction. Resolution = localization precision (\(\sigma \propto 1/\sqrt{N}\)), independent of the diffraction-limited OTF cutoff.
MINFLUX
Combines structured illumination (doughnut beam) with single-molecule sensitivity, optimally encoding position information in the spatial distribution of detected photons. Achieves nm-scale precision through beam engineering, not OTF extension.
Unifying insight: All superresolution techniques exploit nonlinearity (saturation, photoswitching, or structured modulation) or clever information encoding to extract spatial information beyond the diffraction limit. Whether by extending the OTF (STED, SIM) or circumventing it (SMLM, MINFLUX), the underlying principle is the same: convert optical hardware or computational ingenuity into spatial resolution.
11. Summary and Outlook
11.1 Key Takeaways
The diffraction limit is not fundamental: It reflects the finite NA of optical systems, but can be broken using clever physics and mathematics.
Nonlinearity is the key: STED, SMLM, SIM, and MINFLUX all exploit nonlinear fluorescence response (saturation, photoswitching, or spatial modulation) to gain information beyond the diffraction limit.
Trade-offs matter:
Speed vs. resolution (SMLM is slow but very precise; STED is fast but moderate precision)
Photon efficiency vs. speed (MINFLUX uses few photons but requires scanning)
Sample preparation vs. capability (fixed vs. live-cell)
Information is photons: The Cramér-Rao bound shows that localization precision scales as \(1/\sqrt{N}\). Clever beam engineering (MINFLUX) extracts maximum information per photon.
Computation is essential: SMLM reconstruction, SIM deconvolution, and drift correction are inseparable from modern superresolution.
11.2 Emerging Trends
Machine learning: Neural networks for PSF fitting, drift correction, and artifact removal
Hybrid approaches: Combining STED + SIM, or MINFLUX + computational optics
Volumetric fast imaging: 3D STED with adaptive optics, or light-sheet SIM
Live-cell long-term imaging: MINFLUX for ultra-low phototoxicity
Multimodal integration: Superresolution + spectroscopy, electron microscopy correlative imaging
11.3 Outlook
Superresolution microscopy has transformed cell biology and nanoscience. As techniques mature and merge with AI, we expect:
Routine \(\sim 10\) nm resolution in live cells (< 5 years)
Real-time 3D volumetric superresolution (current frontier)
Integration with cryo-EM for in situ structural biology
Quantum optics for sub-shot-noise localization precision
Experimental Connections
Superresolution microscopy is the cutting edge of modern optics, but the core principles can be explored in teaching labs:
Resolution limit verification Image fluorescent beads of known diameter (e.g., 200 nm, 100 nm, 40 nm) with a standard widefield microscope. Beads smaller than the diffraction limit all appear as the same PSF — directly demonstrating the resolution barrier. Fit the PSF width to verify the Rayleigh/Abbe limit.
Single-molecule localization Prepare a very dilute sample of fluorescent molecules on a coverslip (< 1 molecule per diffraction-limited area). Image single molecules — each appears as an Airy disk. Fit 2D Gaussians to localize the center with nanometer precision. This teaches the localization precision formula \(\sigma \approx \sigma_\text{PSF}/\sqrt{N}\).
Blinking and photoactivation Some fluorescent proteins (e.g., mEos, PA-GFP) can be photoactivated with UV light. Illuminate a densely labeled sample with low UV power — sparse molecules turn on stochastically. This is the basis of PALM. Even without a full PALM reconstruction, students see how stochastic activation enables sequential localization.
Structured illumination in 1D Project a 1D sinusoidal pattern onto a fluorescent sample (e.g., using a Ronchi ruling). Acquire three phase-shifted images and reconstruct computationally. Compare the frequency content of the raw and SIM images — the extended bandwidth (2× in 1D) is visible in the Fourier transform.
STED concept demonstration While a full STED setup requires a pulsed depletion laser, the concept can be demonstrated optically: show that stimulated emission depletes fluorescence by co-illuminating a fluorescent cuvette with an excitation and a strong depletion beam. Measure the fluorescence decrease as a function of depletion power — this is the saturation curve that underlies STED resolution.
